TIMES MICROWAVE SYSTEMS

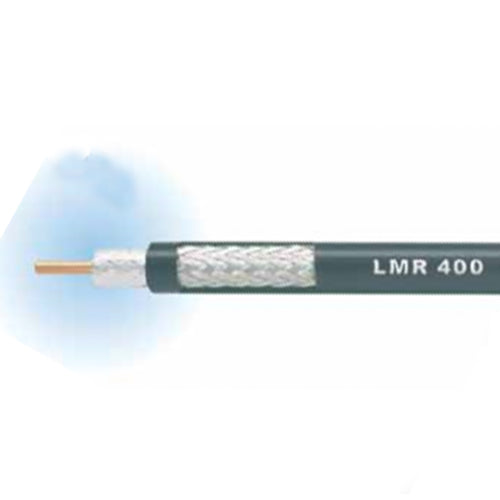

LMR lite®-400
Flexible Low Loss Communications Coax
Ideal for...
• Drop-in replacement for RG-8/9913 Air-Dielectric type Cable • Jumper Assemblies in Wireless Communications Systems
• Short Antenna Feeder runs
• Any application (e.g. WLL, GPS, LMR, WLAN, WISP,
WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable
|
Part Description Stock Part Number Application Jacket Color Code |
|
LMR-LW400 Outdoor PE Black 45001 LMR-LW400-DB Outdoor PE Black 45091 |
|
Construction Specifications Description Material In. (mm) |
|
Inner Conductor Solid BCCAI 0.108 (2.74) |
|
Dielectric Foam PE 0.285 (7.24) |
|
Outer Conductor Aluminum Tape 0.291 (7.39) |
|
Overall Braid Aluminum 0.320 (8.13) |
|
Jacket (See table) 0.405 (10.29) |
PE = Polyethylene
|
Environmental Specifications Performance Property 0F oC |
|
Installation Temperature Range -40/+185 -40/+85 |
|
Storage Temperature Range -94/+185 -70/+85 |
|
Operating Temperature Range -40/+185 -40/+85 |
|
Mechanical Specifications Performance Property Units US (metric) |
|
Bend Radius: installation in. (mm) 1.00 (25.4) |
|
Bend Radius: repeated in. (mm) 4.0 (101.6) |
|
Bending Moment ft-lb (N-m) 0.5 (0.50) |
|
Weight lb/ft (kg/m) .050 (0.075) |
|
Tensile Strength lb (kg) 160 (72.6) |
|
Flat Plate Crush lb/in. (kg/mm) 40 (0.71) |
|
Electrical Specifications Performance Property Units US (metric) |
|
Velocity of Propagation % 84 |
|
Dielectric Constant NA 1.38 |
|
Time Delay nS/ft (nS/m) 1.20 (3.92) |
|
Impedance ohms 50 |
|
Capacitance pF/ft (pF/m) 23.9 (78.4) |
|
Inductance uH/ft (uH/m) 0.060 (0.20) |
|
Shielding Effectiveness dB >90 |
|
DC Resistance |
|
Inner Conductor Outer Conductor Voltage Withstand ohms/1000ft (/km) 1.39 (4.6) ohms/1000ft (/km) 6.1 (20.0) Volts DC 2500 |
|
Jacket Spark Volts RMS 8000 |
|
Peak Power kW 16 |
| Length In Feet | 1 Foot, 50 Feet, 100 Feet, 500 Feet, 1000 Feet |
|---|
