LMR-400 Light Weight Cable

LMR-400 Light Weight Cable

Regular price $1.20 USD
Regular price Sale price $1.20 USD
Sale Sold out
Length In Feet
page1image1286331312

TIMES MICROWAVE SYSTEMS

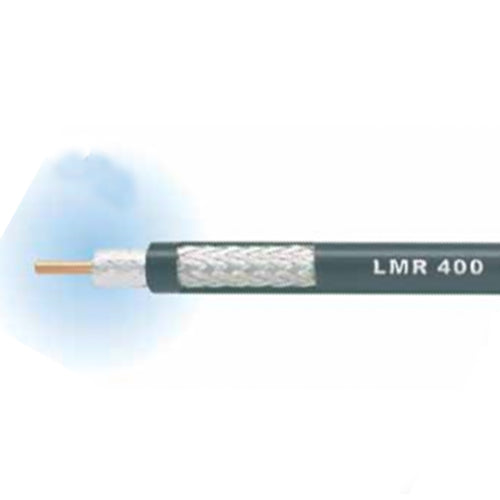

LMR lite®-400

Flexible Low Loss Communications Coax

page1image1286119552

Ideal for...

Drop-in replacement for RG-8/9913 Air-Dielectric type Cable Jumper Assemblies in Wireless Communications Systems
Short Antenna Feeder runs
Any application (e.g. WLL, GPS, LMR, WLAN, WISP,

WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable

Part Description Stock Part Number Application Jacket Color Code

LMR-LW400 Outdoor PE Black 45001 LMR-LW400-DB Outdoor PE Black 45091

Construction Specifications

Description Material In. (mm)

Inner Conductor Solid BCCAI 0.108 (2.74)

Dielectric Foam PE 0.285 (7.24)

Outer Conductor Aluminum Tape 0.291 (7.39)

Overall Braid Aluminum 0.320 (8.13)

Jacket (See table) 0.405 (10.29)

PE = Polyethylene

Environmental Specifications

Performance Property 0F oC

Installation Temperature Range -40/+185 -40/+85

Storage Temperature Range -94/+185 -70/+85

Operating Temperature Range -40/+185 -40/+85

Mechanical Specifications

Performance Property Units US (metric)

Bend Radius: installation in. (mm) 1.00 (25.4)

Bend Radius: repeated in. (mm) 4.0 (101.6)

Bending Moment ft-lb (N-m) 0.5 (0.50)

Weight lb/ft (kg/m) .050 (0.075)

Tensile Strength lb (kg) 160 (72.6)

Flat Plate Crush lb/in. (kg/mm) 40 (0.71)

Electrical Specifications

Performance Property Units US (metric)

Velocity of Propagation % 84

Dielectric Constant NA 1.38

Time Delay nS/ft (nS/m) 1.20 (3.92)

Impedance ohms 50

Capacitance pF/ft (pF/m) 23.9 (78.4)

Inductance uH/ft (uH/m) 0.060 (0.20)

Shielding Effectiveness dB >90

DC Resistance

Inner Conductor Outer Conductor Voltage Withstand

ohms/1000ft (/km) 1.39 (4.6) ohms/1000ft (/km) 6.1 (20.0)

Volts DC 2500

Jacket Spark Volts RMS 8000

Peak Power kW 16
