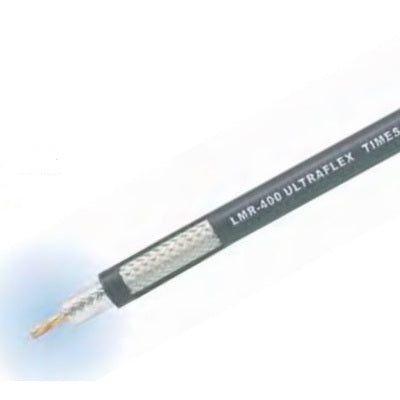

LMR-400 Ultra Flexible Cable

TIMES MICROWAVE SYSTEMS LMR-®400-UF

UltraFlex Communications Coax

Ideal for...

• Drop-in replacement for RG-8/9913 Air-Dielectric type Cable • Jumper Assemblies in Wireless Communications Systems
• Short Antenna Feeder runs
• Any application that requires periodic/repeated flexing

• LMR®- UltraFlex has a stranded center conductor and rubber outer jacket designed for multiple bending/ flexing cycles. It is used for both indoor and outdoor applications.

• FlexibilityandbendabilityarehallmarksoftheLMR- 400-UF cable design. The flexible outer conductor enables the tightest bend radius available for any cable of similar size and performance.

• Low Loss is another hallmark feature of LMR-400- UF. Size for size LMR has the lowest loss of any flexible cable and comparable loss to semirigid hard-line cables. • RF Shielding is 50 dB greater than typical single shielded coax (40 dB). The multi-ply bonded foil outer conductor is rated conservatively at > 90 dB (i.e. >180 dB between two adjacent cables).

• Weatherability:LMR-400-UFcablesaredesigned for outdoor exposure and have a life expectancy in excess of 10 years.

• Connectors: A wide variety of connectors are available for LMR-400-UF cable, including all common interface types, reverse polarity, and solder-on center pins. Most LMR connectors employ crimp outer attachment using standard hex crimp sizes.

• CableAssemblies:AllLMR-400-UFcabletypesare available as pre-terminated cable assemblies. Refer to the section on FlexTech for further details.
