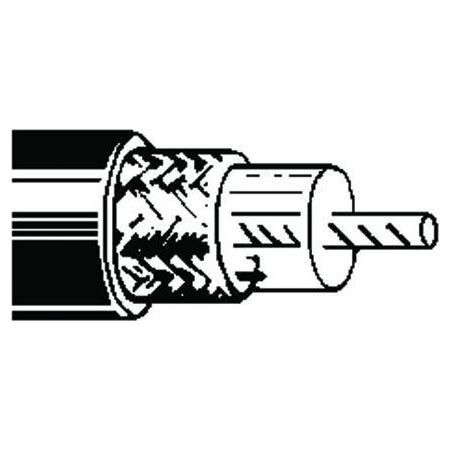

BELDEN .405" OD RG8/U Type 50 Ohm Coaxial Cable
BELDEN .405" OD RG8/U Type 50 Ohm Coaxial Cable
Regular price
$4.00 USD
Regular price
Sale price
$4.00 USD
Unit price
per
Couldn't load pickup availability
| Coaxial Cable | |
|---|---|
| Jacket Material | Black PVC |
| Ship Weight (lbs.) | 0.1 |
| Attenuation (dB) | |
| 100 FT/30 MHz | 0.99 |
| 100 FT/150 MHz | 2.3 |
| 100 FT/450 MHz | 4.5 |
| 100 FT/824 MHz | 7.2 |
| 100 FT/960 MHz | 7.8 |
| 100 FT/1500 MHz | 9.7 |
| 100 FT/2000 MHz | 11.2 |
| 100 FT/2300 MHz | 12 |
| 100 FT/5800 MHz | 18.8 |
| General Characteristics | |
| Max. Frequency | N/A |
| Propagation Velocity | 66% |
| Overall Diameter(in) | 0.405 |
| Dielectric | Solid Polyethylene |
| Outer Conductor | 90% Bare Copper Braid |
| Inner Conductor | Solid Bare Copper |
| Min. Bending Radius(in) | 4.5" |
| Warranty | 10 Year |
| Shipping Method | UPS |
| Coaxial Cable Types | |
| Impedance | 50 Ohm |
| Cable Type | RG8/U Type |
| Weight | 0.11 lbs |
