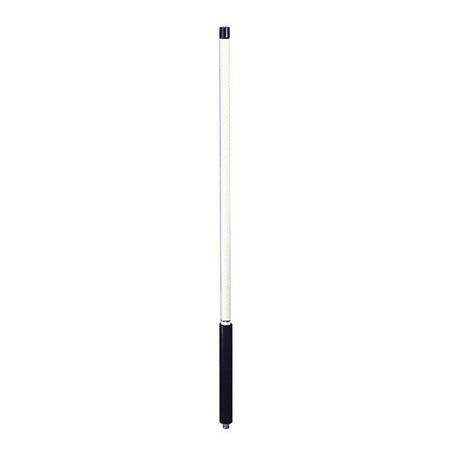

COMTELCO Antenna 406-512 MHz, 4.5 dBd Gain
PRODUCT OVERVIEW
Reliable Performance: Rated at 250 watts and 4.5 dBd gain, you can expect years of continuous service.
Rugged Construction: The radiating elements are constructed of copper & copper alloy. They are encased in a Fiberglass radome for total environmental protection.
Weatherproof: The fiberglass radome is ultraviolet inhibited. The heavy wall aluminum mounting sleeve is epoxy coated for superior weather protection.
Lightweight: These antennas are lightweight at less than 6 lbs. but are designed to easily withstand winds of over 125 MPH.
| Omni Antenna | |
|---|---|
| Frequency Range (MHz) | 450-480 |
| Omni Antenna Spec1 | |
| Gain | 4.5 dB |
| Bandwidth (MHz) | 20 |
| Electrical Downtilt | 0 |
| Power (watts) | 250 |
| Vert. Beamwidth | 30 Deg |
| Termination | N-Female, pigtail optional |
| Jumper Supplied | No |
| Mounting Hardware | BSMNT2 mounting kit |
| Support Pipe Dia. (in.) | N/A |
| Overall Length (in.) | 60" |
| Omni Antenna Spec2 | |
| Wind Rating (mph) | 125 |
| Net Weight (lbs.) | 6 |
| Shipping Method | UPS |
| Ship Weight (lbs.) | 9 |
| Weight | 10 lbs |
