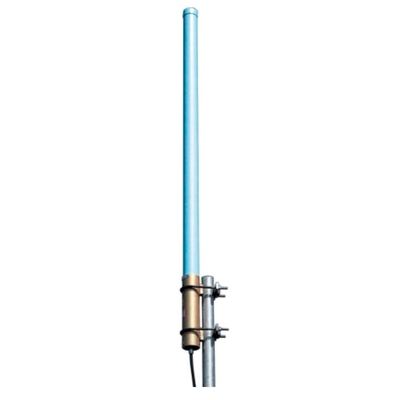

148-174 MHz 2.5dBd Fiberglass Omni-directional Base Antenna
TELEWAVE, INC.
ANT150F2
FIBERGLASSCOLLINEARANTENNA 2.5dBd
The Telewave ANT150F2 is an extremely rugged collinear antenna, with moderate gain and wide vertical beamwidth. This compact antenna produces 2.5 dBd gain, and is designed for operation in all environmental conditions. The antenna is constructed with brass and copper elements, with a path to DC ground for lightning impulse protection.
All junctions are fully soldered to prevent RF intermodulation, and each antenna is completely protected within a rugged, high- tech radome to ensure survivability in the worst environments. The “Cool Blue” radome provides maximum protection from corrosive gases, ultraviolet radiation, icing, salt spray, acid rain, and wind blown abrasives.
The ANT150F2 includes the ANTC485 dual clamp set for mounting to a 1.5” to 3” O.D. support pipe, and a 24” removable RG-213 N-Male jumper.
