Telewave 380-470 MHz 2.5dB Fiberglass Omni Antenna
Telewave 380-470 MHz 2.5dB Fiberglass Omni Antenna
Regular price
$1,090.00 USD
Regular price
Sale price
$1,090.00 USD
Unit price
per
Couldn't load pickup availability

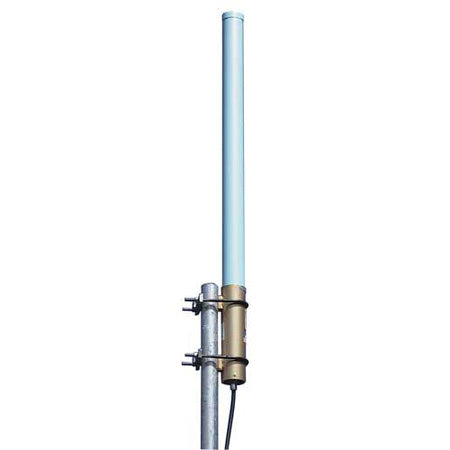

The Telewave ANT425F2 is an extremely rugged collinear antenna, with moderate gain and wide vertical beamwidth. This compact antenna produces 2.5 dBd gain, and is designed for operation in all environmental conditions. The antenna is constructed with brass and copper elements, with a path to ground potential for lightning impulse protection.
Frequency | 380-470 MHz |
Gain | 2.5 dBd |
Power Rating | 500W |
Impedance | 50 ohms |
VSWR | 1.5:1 or less |
Pattern | Omnidirectional |
Vertical Beamwidth | 38° |
Termination | Recessed N Female or 7-16 DIN Female |
Dimensions | 42" x 2.75" |
Weight | 9 lbs |
Wind Rating | 200 mph |
Lateral Thrust at 100 mph | 38 lbs |
Bending Moment at Top Clamp | 30 ft lb |
