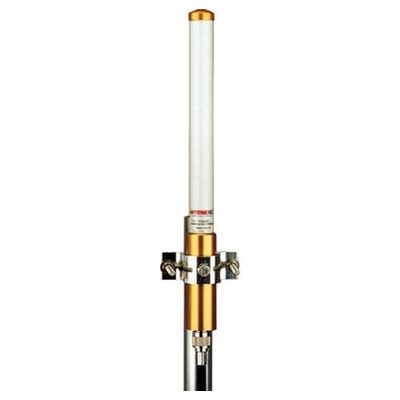

Laird fiberglass base station antennas are collinear designs enclosed in a high density fiberglass which is covered with a protective ultraviolet inhibiting coating. The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line resulting in a "cold" sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.
| Omni Antenna | |
|---|---|
| Frequency Range (MHz) | 450-470 |
| Omni Antenna Spec1 | |
| Gain | 0 dBd |
| Bandwidth (MHz) | Same as Freq Range |
| Electrical Downtilt | 0 |
| Power (watts) | 100 |
| Vert. Beamwidth | 75 Deg |
| Termination | N-Female |
| Jumper Supplied | No |
| Mounting Hardware | Optional FM2 |
| Support Pipe Dia. (in.) | 1/1/2004 |
| Overall Length (in.) | 26 |
| Omni Antenna Spec2 | |
| Wind Rating (mph) | 125 |
| Net Weight (lbs.) | 4 |
| Shipping Method | UPS |
| Warranty | 2 Year |
| Ship Weight (lbs.) | 1.6 |
| Weight | 11 lbs |
