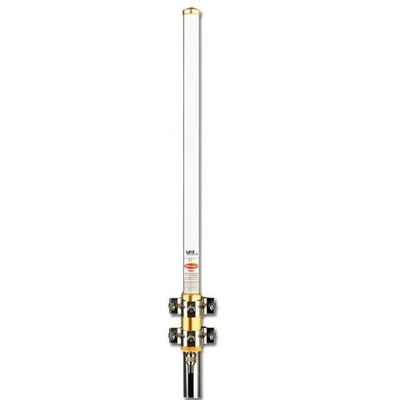

Laird 450-470 MHz 5 dB Fiberglass Omni 76" Antenna

Laird 450-470 MHz 5 dB Fiberglass Omni 76" Antenna

Regular price $280.00 USD
Regular price Sale price $280.00 USD
Sale Sold out

Laird Technologies’ Base Station Antennas

Laird Technologies offers an extensive array of base station and in-building wireless antennas. Responding to the ever-increasing variety of frequencies and applications, Laird Technologies offers VHF, UHF, 700 MHz, Cell/PCS dual-band and GSM/UMTS tri-band variations. Leading the industry with the internally matched, fully welded, gold anodized Yagi, all Laird Technologies base station antennas represent high performance and long-lasting value. For example, Laird Technologies omni-directional models are the antennas of choice for research bases in Antarctica.

Electrical Specifications
Frequency Range (MHz) 450-470
Gain 5 dB
Bandwidth (MHz) Same as Freq Range
Downtilt 0
Power (watts) 100
Vert. Beamwidth 27 Deg
Mechanical Specifications
Termination N-Female
Jumper Sold Separately
Mounting Hardware Sold Separately
Height 76 In
Wind Rating (mph) 125
Net Weight (lbs.) 6
Warranty 2 Year
Ship Weight (lbs.) 8
Weight 4 lbs
