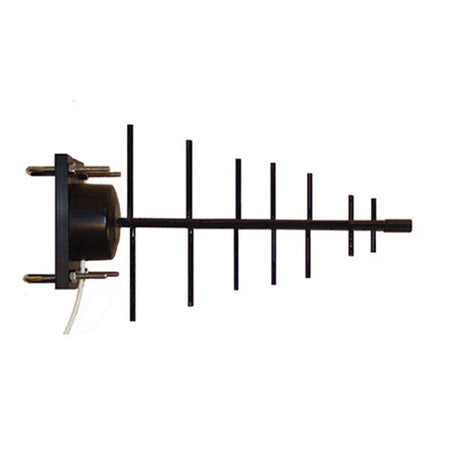

Directional 400-1000 MHz Yagi 7dBd widebnd N(F) Conn on 12" pigtail Antenna

Directional 400-1000 MHz Yagi 7dBd widebnd N(F) Conn on 12" pigtail Antenna

$280.00 USD
$280.00 USD
Sale Sold out

COMTELCO, INC.

High Performance: This 10 element yagi antenna provides 7dBd /9dBi gain with excellent wide band performance.

Rugged and weatherproof: Our hybrid radome construction provides excellent weather protection for our driven element. The radome is constructed of UV inhibited ABS. The heavy duty mounting plate is extruded aluminum. Stainless steel V bolts are provided for long term reliability and resistance to corrosion.

Lightweight and Durable: This yagi antenna is easily installed by one person, yet is designed to withstand 125 MPH winds.

Electrical Specifications
Frequency Range 400-1000 MHz
VSWR <2.2:1
Gain 7 dBd
Rating 150 Watts
F to B 20 dB
Impedance 50Ω
Mechanical Specifications
Material Aluminum & Brass booms
3/16" solid elements
Radome 3" UV inhibited ABS
Termination 12" Teflon pigtail with N connector.
Mounting 2 1/2" mast maximum
Length 15.0 In
Height 14.0 In
Weight 2.0 Lbs
